This kit replaces the 2 piece articulated piston design to a 1 piece steel piston similar to the piston used in a C15 Acert. The pistons in this kit are more durable compared to the 2 piece design for applications where cylinder scuffing is more likely to occur. We highly recommend this kit for any rebuild for over the road or high performance applications.
Core Purpose and Upgrades- Engine Fitment: Primarily fits Caterpillar C15 and 3406E engines (15.2L). Specifically Prefixs 5EK, 6TS, 1LW, 2WS, 6NZ, MBN,

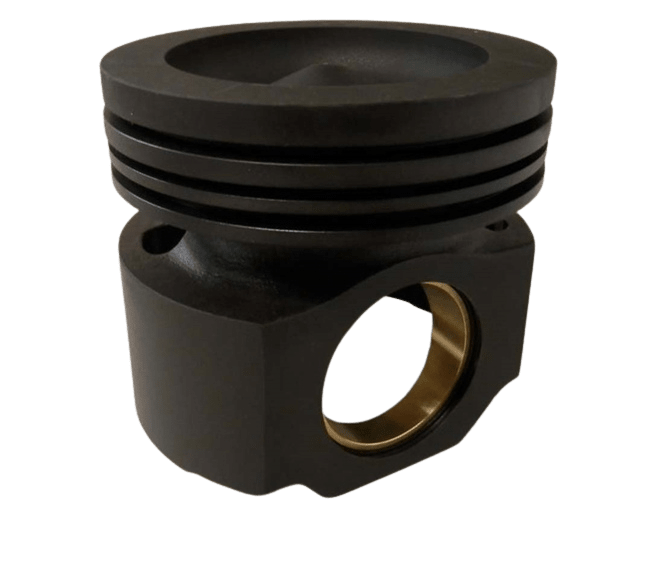

- Piston Upgrade: Converts engines from traditional articulated (two piece) pistons to a 1-piece steel piston design, which offers improved strength and longevity.
- Compression Ratio: The pistons in this kit typically maintains a 16.6:1 compression ratio, matching the original specs for a drop-in replacement.
- Liner Design: Uses specialized cylinder liners to help prevent scuffing and improve sealing.
We have used this kit in engines from stock to 1100 HP without a single piston failure.
This Kit Contains:
1687246SP – PISTON PIN, SPECIAL (x 6)
2531752 – THRUST PLATE (x 2)
3178766 – MAIN BEARING, STD (DIESEL) (x 7)
7E1177 – RETAINER, PISTON PIN (x 12)
9Y7735G – CON ROD BRG STD GROOVED (x 6)
C15RS5 – RING SET (x 6)
IPDSPC15W – SPECIAL C15 STEEL WELDED PISTON (x 6)
C15002SPNLS – GASKET SET, IN-FRAME 48 (x 1)
1685248 – SEAL-ISOLATION (x 1)
1979322CSSPWS – LINER SPECIAL WITH SEALS (x 6)
Key Advantages
- Durability: The 1-piece steel piston is designed to handle extreme loads better than multi-piece alternatives.
- Reduced Scuffing: The specialized liner design reduces common failure points.
- Drop-in Replacement: Requires no major alterations or modifications to the engine block for installation.
Warranty:
No Warranty offered with this product. Off Highway Use Only.
Shipping:
Free shipping to business address
